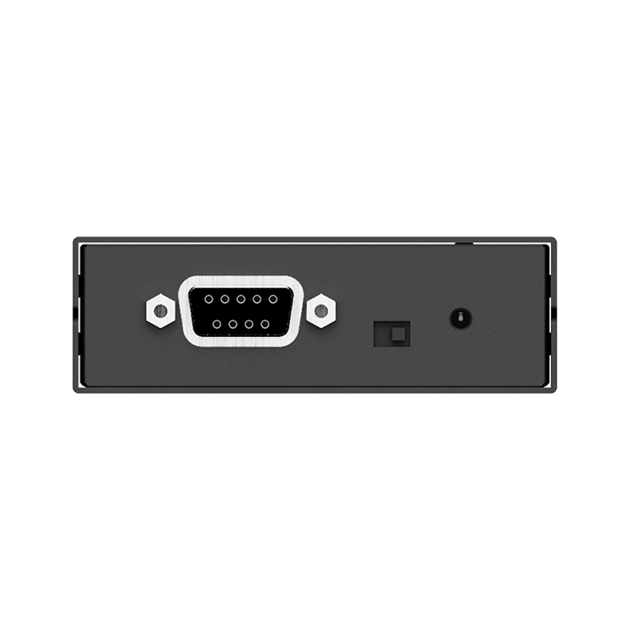

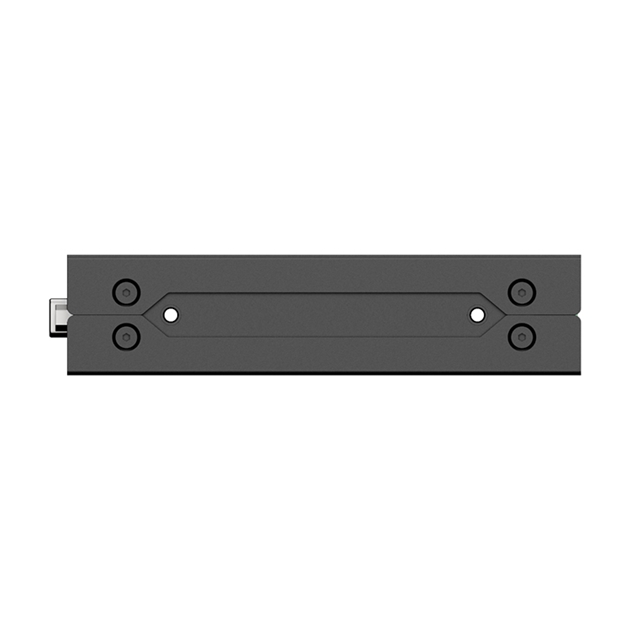

NC225

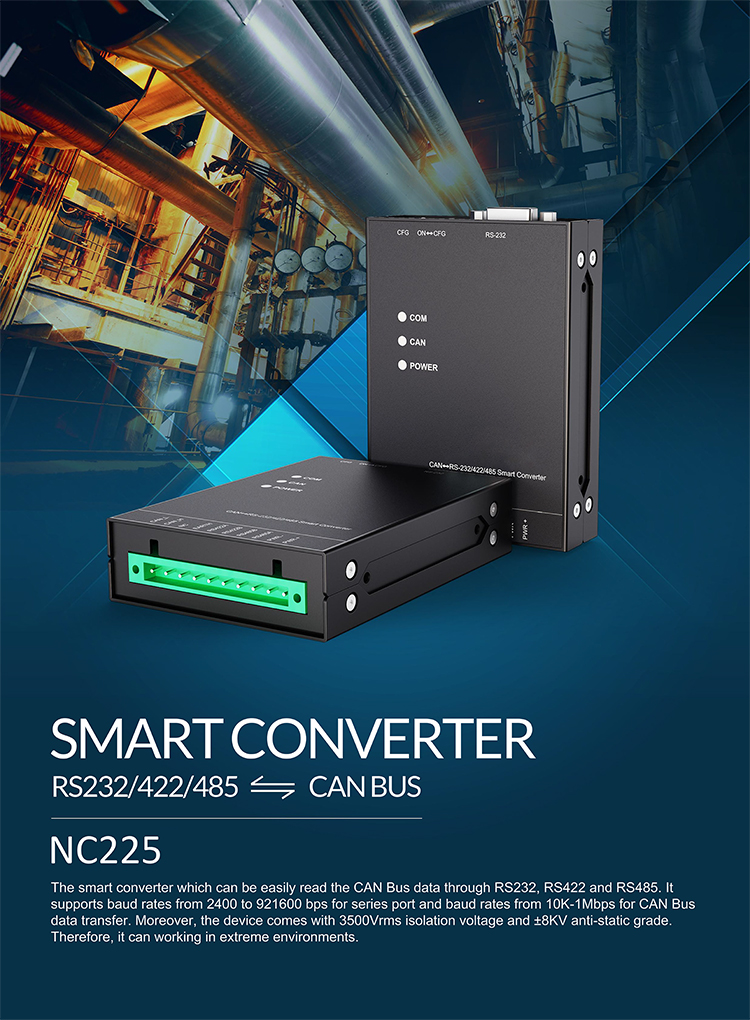

Data Conversion Smart Converter

The smart converter which can be easily read the CAN Bus data through RS232, RS422 and RS485. It supports baud rates from 2400 to 921600 bps for series port and baud rates from 10K-1Mbps for CAN Bus data transfer. Moreover, the device comes with 3500Vrms isolation voltage and ±8KV anti-static grade. Therefore, it can working in extreme environments.

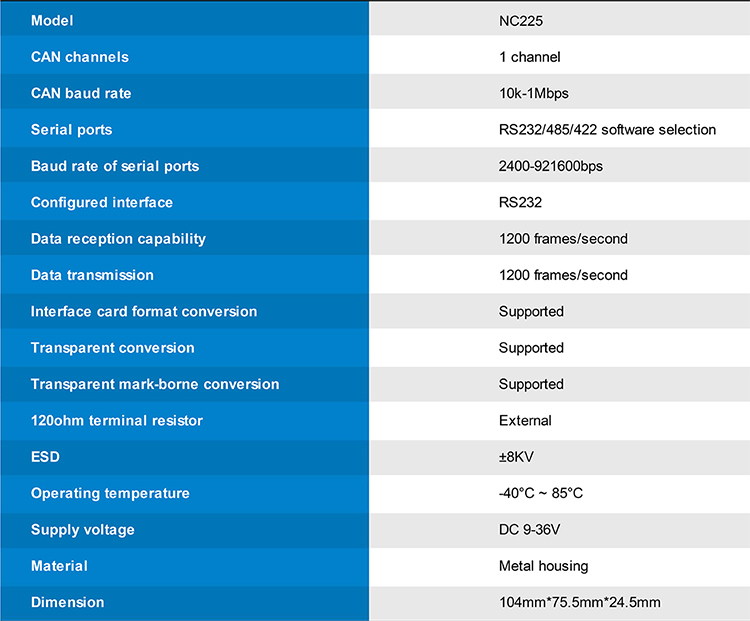

FEATURES

* CAN channels: 1 channel; CAN baud rate: 10k-1Mbps
* Serieal ports: RS232/485/422 software selection
* Baud rate of serial ports: 2400-921600bps
* Configured interface: RS232
* Data reception capability: 1200 frames/second
* Data transmission:1200 frames/second
* ESD:±8KV;Supply voltage:DC9-36V
* 120ohm terminal resistor:External

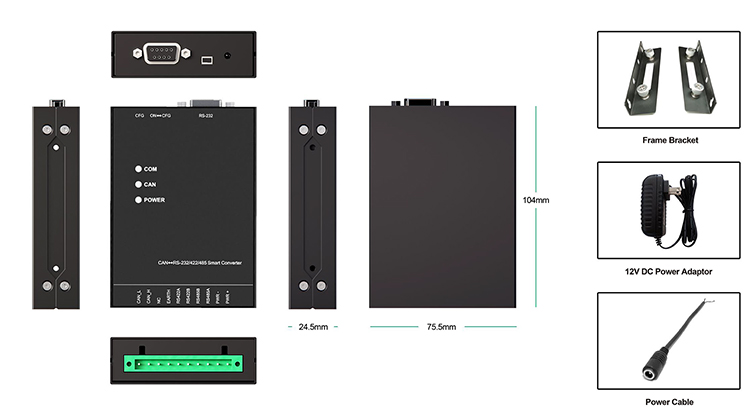

* Dimension: 104*75.5*24.5mm

•

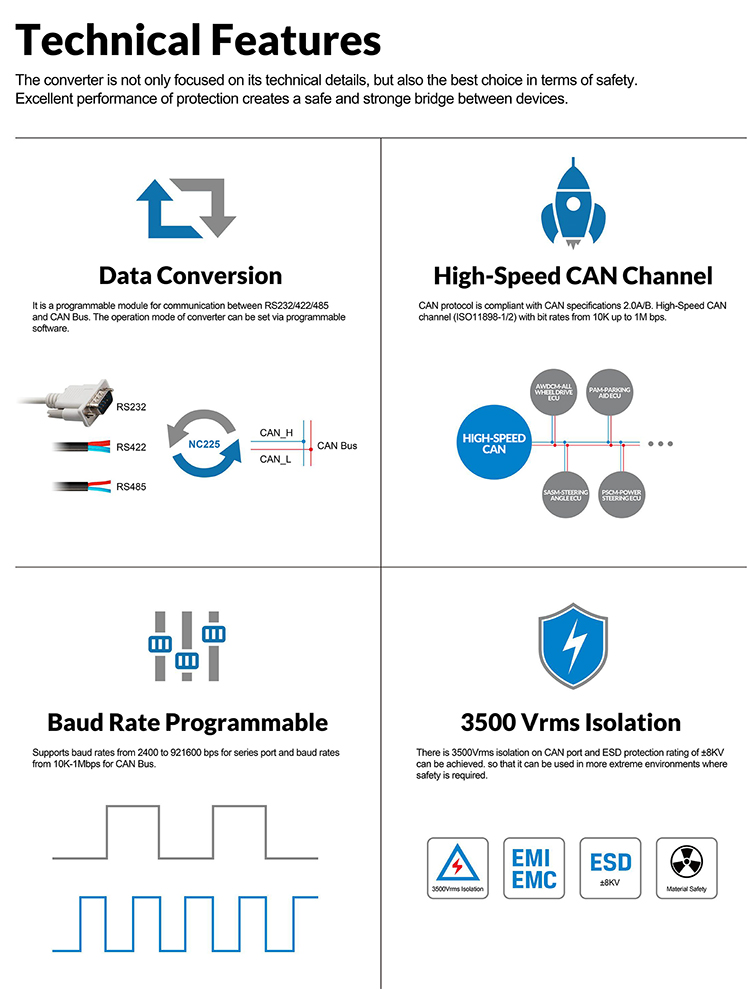

  Data
  Conversion

•

  High-Speed
  CAN Channel

•

  Baud Rate
  Programmable

•

  3500Vrms
  Isolation
